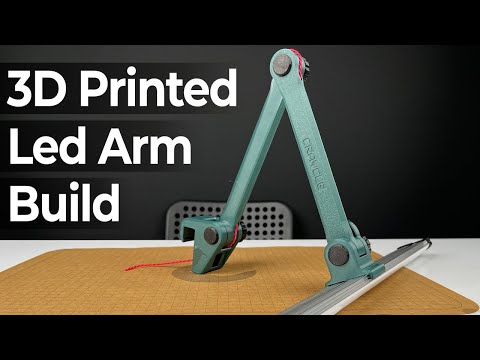

I would like to present the Led Arm design, which I have been using for about 2 years, to your use. Before publishing, I made serious improvements to the design, but even in its previous form, it has been working fine for 2 years.
Since it is compatible with standard LEDs, the length of the Led Bar, the function of the LEDs used and the purpose of the Led Arm are entirely up to you. We can’t wait to see what you will do.
Testing for a long time!
We have used this design in our workshop while developing our models for 2 years. With the 12V USB converter, the 500mm LED Bar works perfectly, so you can get power from any USB output port such as monitor, computer or powerbank. I also used the first version on the monitor and FPV Orca was designed on this setup.
Long lasting!
All parts are made wear resistant even for PLA. You do not need to increase the inner filling to achieve this. We added additional walls to the force-exposed areas.
Once you use the Led Arm on your desk, you will not be able to work without it again!
Included Two Options!
Not just for the workspace!
If you like mechanical lighting, you can also use the Led Arm as a Sconce. Color and material texture are completely under your control. When not in use, you can fold it and turn off the lighting on the body.
The wall mount looks stylish even without the Led Arm!
The Led Arm fits nicely on anything 18mm thick. With the wall bracket design we provide, you can fix it wherever you want and move it easily.
Necessary Equipments
- Power Suply Option 1
- Power Suply Option 2
- Power Suply Option 3
- Power Suply Option 4
- LED
- Led Bar
- 22 AWG Cable
- Rocker Switch
- Self Tapping Screws
- M5x20-M5x40 Bolts and Nuts
Optioanal Equipments
- Soldering Iron
- Soldering Kit
- Colored Wires
- RGB Led
- PLA Filament
- Screwdriver Option 1
- Screwdriver Option 2
- Double Sided Tape
- CA Glue
- Plier Set
