Home Physical Products Power Systems RS2205 2300KV 30g Brushless Motor (CCW)

RS2205 2300KV 30g Brushless Motor (CCW)

5mm Shaft Diameter, Max. Thrust 1024 grams

SKU: CR23_9391936
$ 16,21
You are from United States (US), price will be in United States (US) dollar ($).
United States dollar
  • Euro
  • Turkish lira
  • United States dollar
  • Pound sterling
  • Swiss franc
  • Swedish krona
  • Norwegian krone
  • Vietnamese đồng

It has a unique cooling fin that draws air from the RS2205's engine coils. The faster the motor spins, the more the air moves. Air passing around the coil can reduce the temperature of the engine by up to 30% and increase its operating time.

Note: This motor is CCW (Counter Clockwise) rotating motor, choose the propeller direction in the same way.

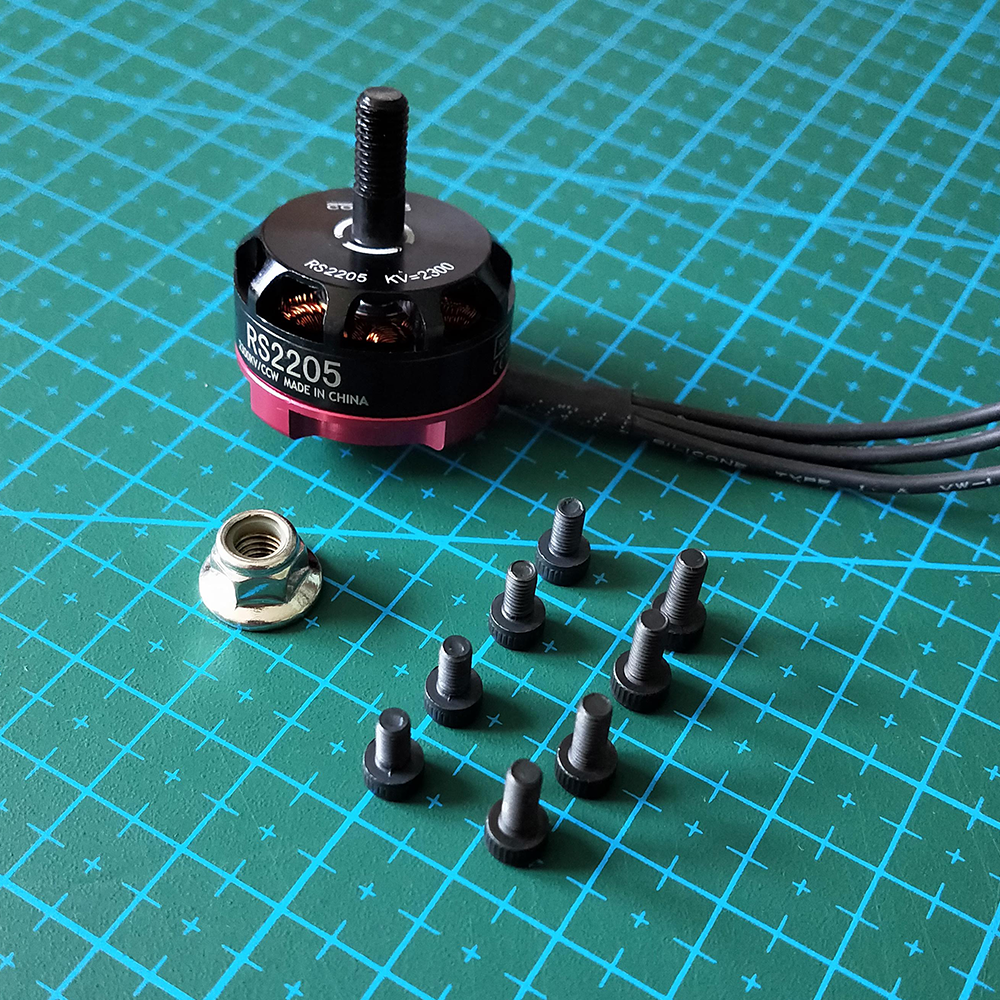

Package Included:

  • RS2205 Brushless Motor (CCW)
  • Propeller Holder Nut
  • 4 short imbus bolts
  • 4 long imbus bolts

Technicial Specifications:

  • Engine Diameter: 28mm
  • Shaft Diameter: 5 mm
  • Weight: 30g
  • Motor KV: 2300 RPM/V
  • Suitable Li-Po Battery: 3-4S
  • Suitable ESC:30A
  • Propellers: 5" - 6"
  • Maximum Thrust: 1024 grams

Additional information

Weight 50 g
Dimensions 60 × 52 × 30 mm
