The FPV Orca is our first model and was developed for FPV Free Flight. Great progress has been made in moving from Orca V1 to Orca V2.

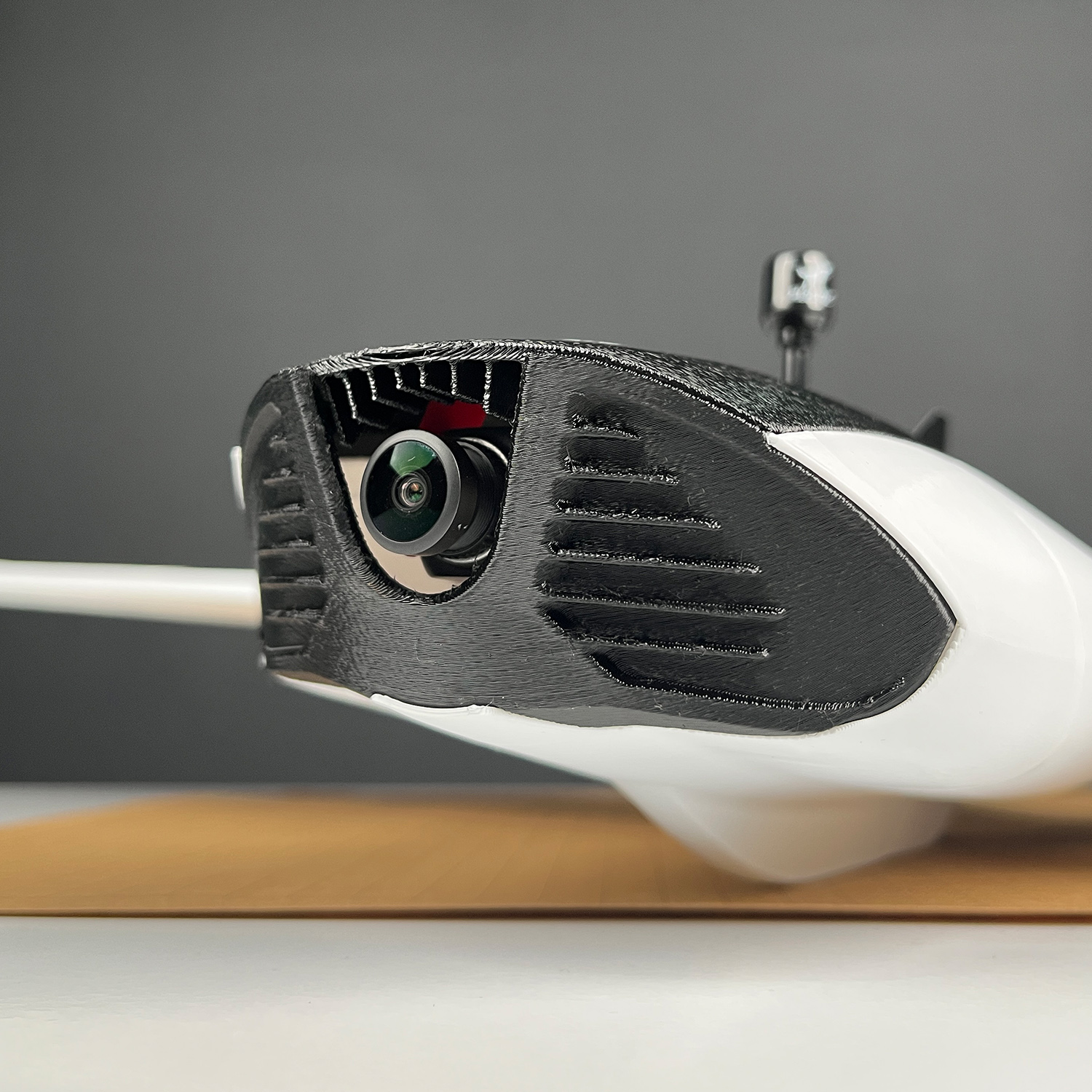

The Orca V2 was not developed for large shooting cameras like the GoPro, but you can capture HD aerial footage thanks to its Digital FPV Hatches. In addition, new FPV Hatches will be added for new FPV systems. Please request from us...
Its fuselage is derived from the wing profile and therefore offers excellent aerodynamics. Orca's stall speed is 55km/h and has a maximum speed of over 300km/h. In contrast, the print weight is only 217 grams with Regular PLA.

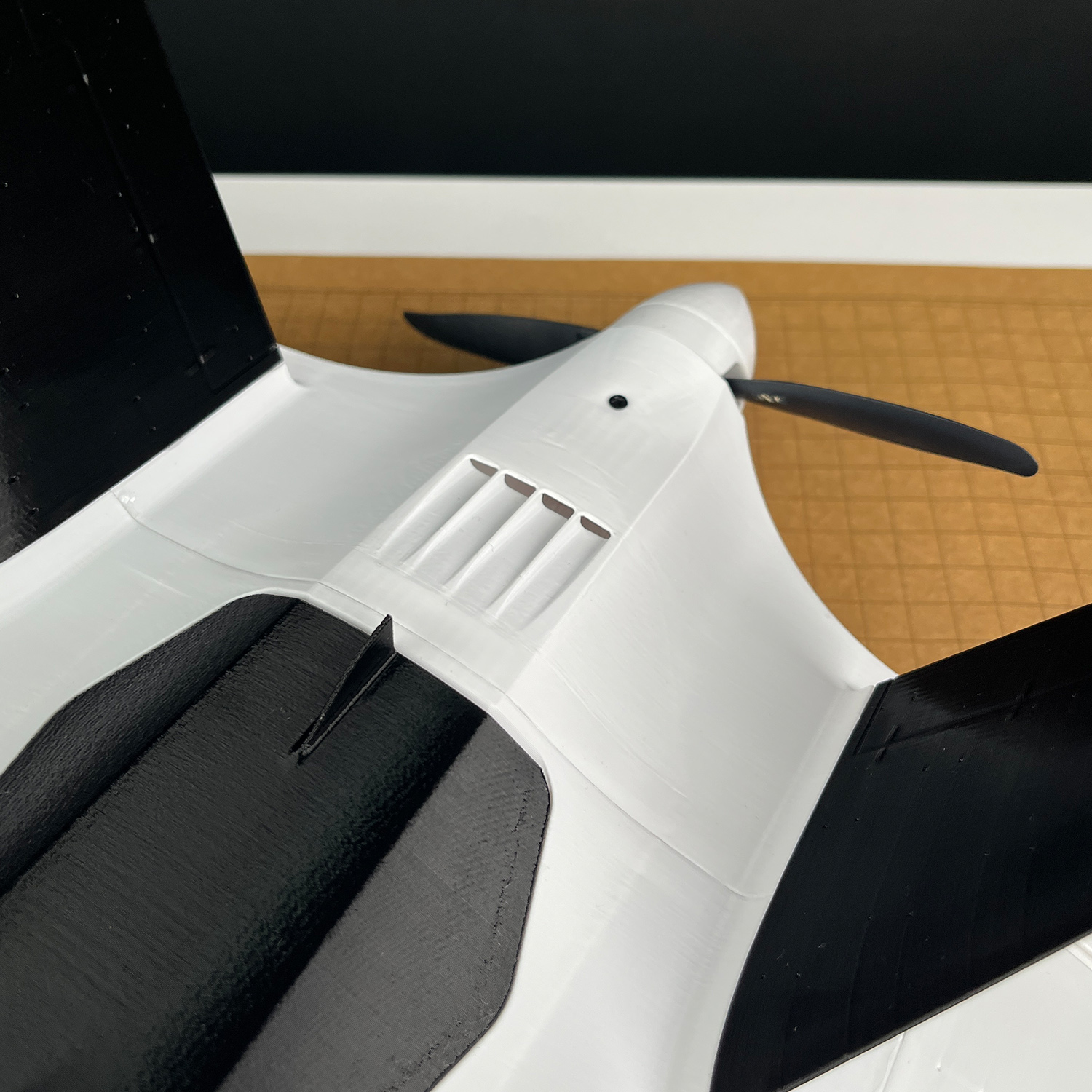

Orca V2 provides excellent cooling for the FPV system and Motor and you will not have any overheating problems.

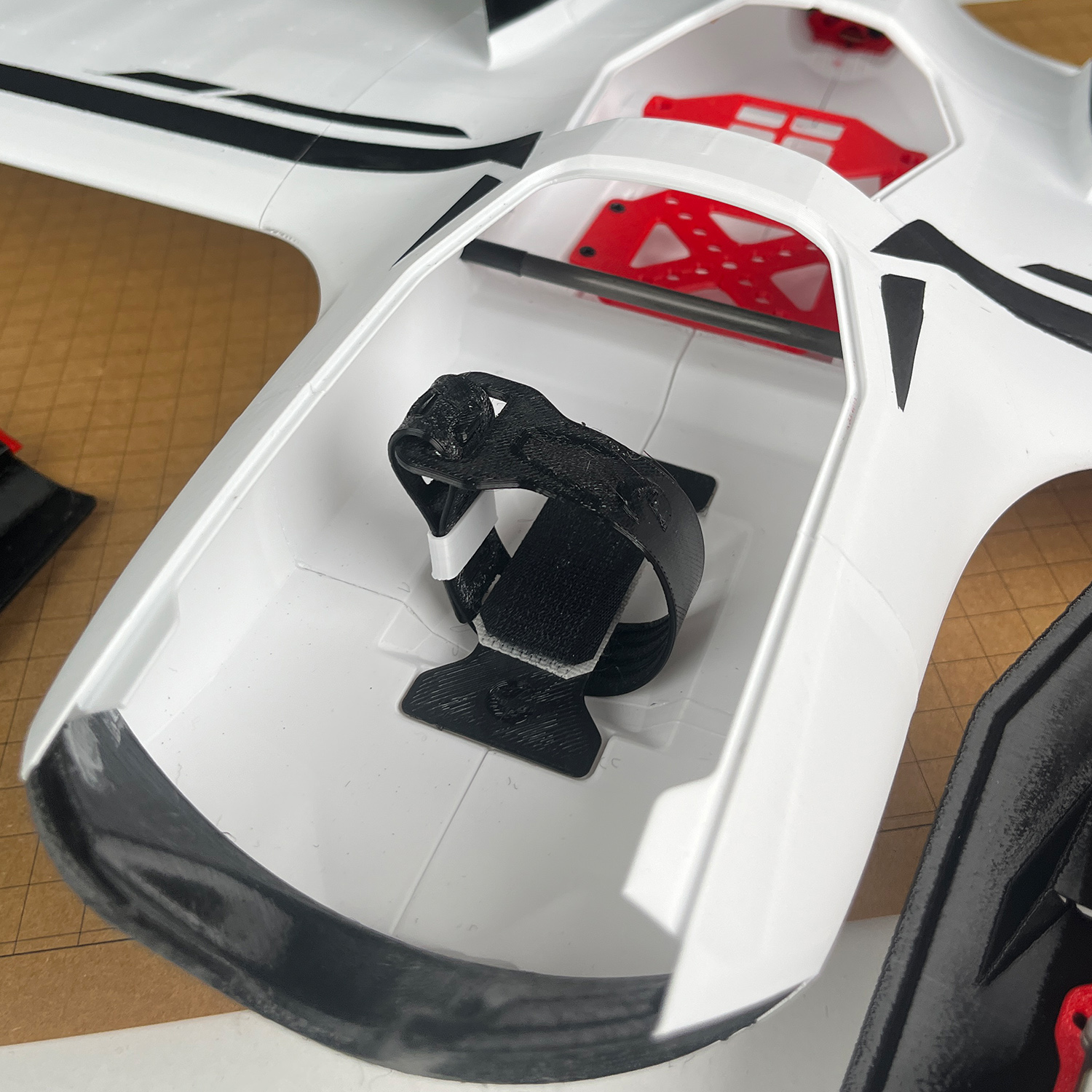

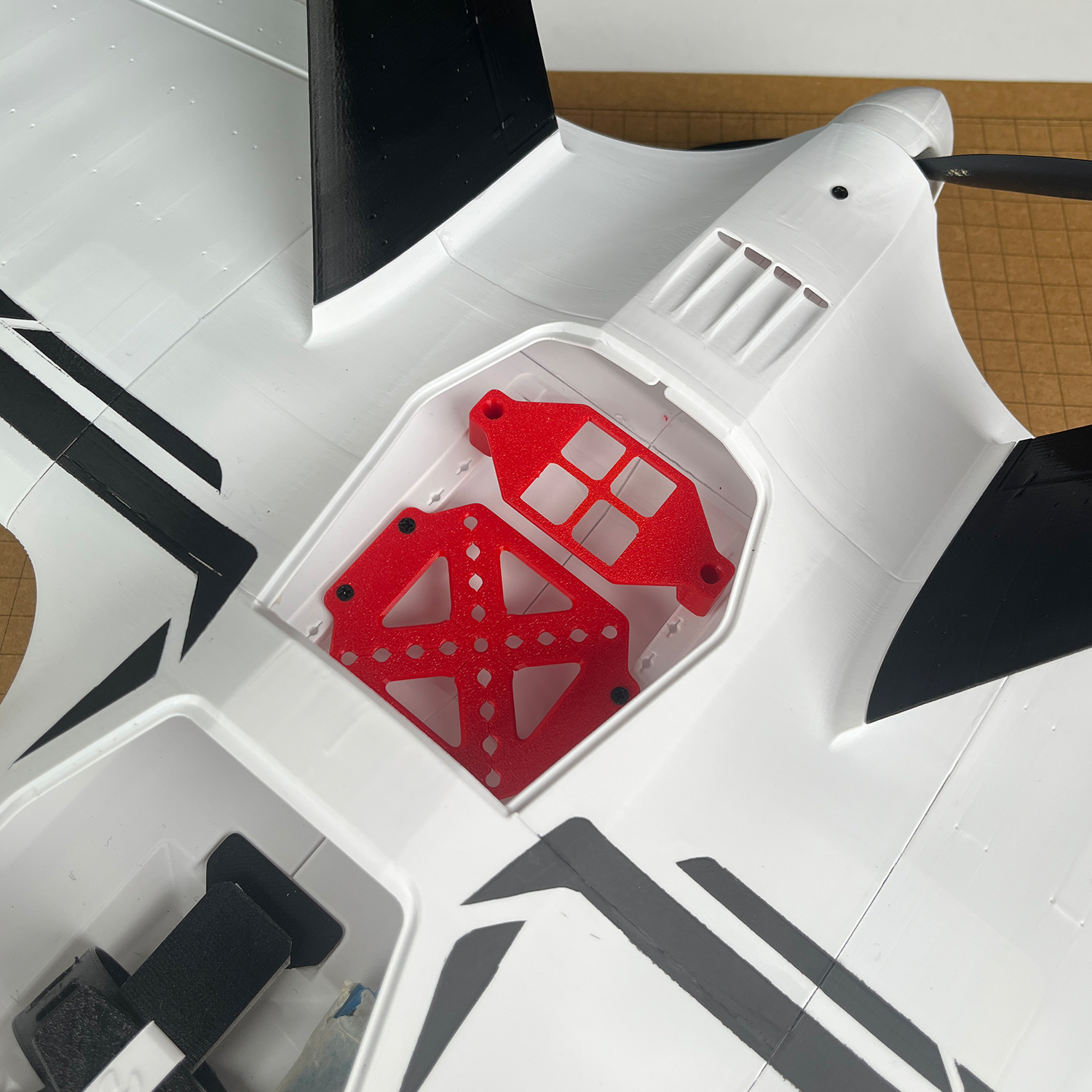

Orca V2 has a second service hatch so you can install and service your FC and other accessories. There is a lot of space inside of the fuselage for this.
It's everything you need for FPV Freestyle!
General Specs:
Length : 365 mm
Wingspan : 800 mm
Print Weight : 217 gram
Flying Weight : 450-550 gram
Wing Area : 12.5 dm2
Wing Loading : 40g/dm2
Airfoil : MH 45 9.85%
Required Electronics:
- 4ch Radio
- 2205-2212 size, 1800-2300kv Brushless Motor
- 5040/6040 Propeller
- 20-30A ESC
- 1000-2500 mAh 3-4S Lipo
- 2 pcs, 9g servos
- CA Glue
Note: Everything else is included in the package.
Package Included:
- 3D Printed model parts PLA

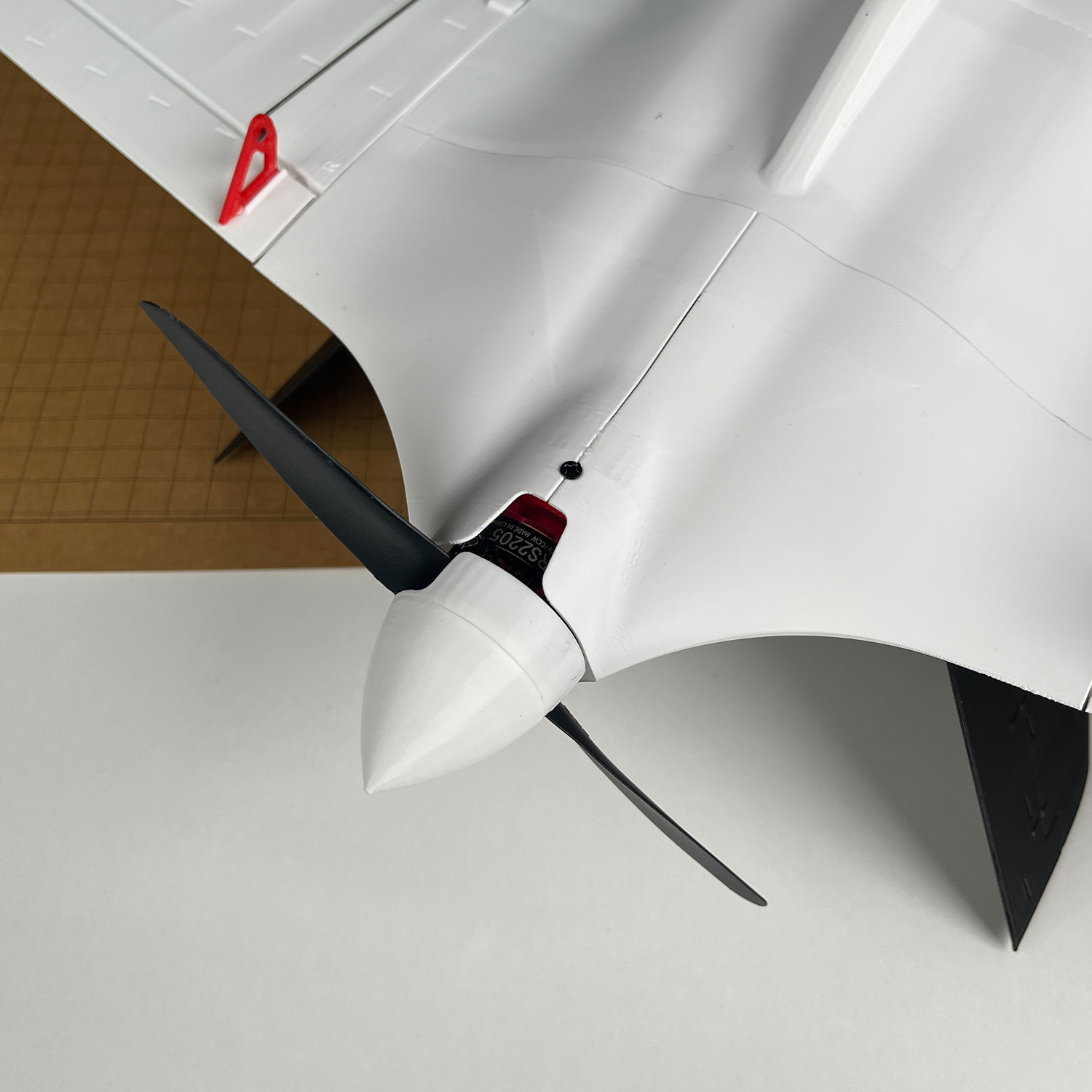

- 3D Printed hardware PetG (Motor mount, horn, protector and etc.)

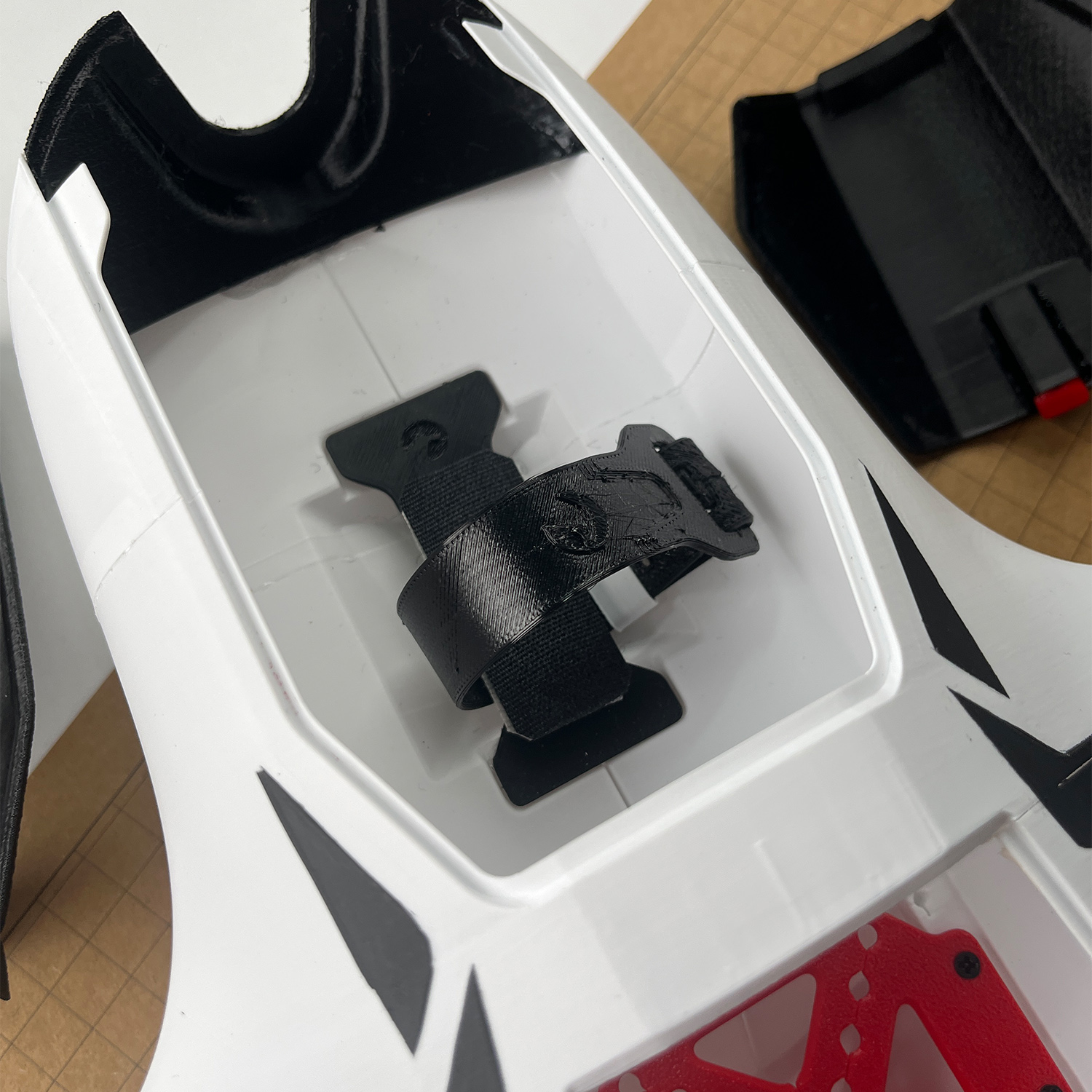

- Lipo velcro belt
- Ø5x500mm Carbon Rod

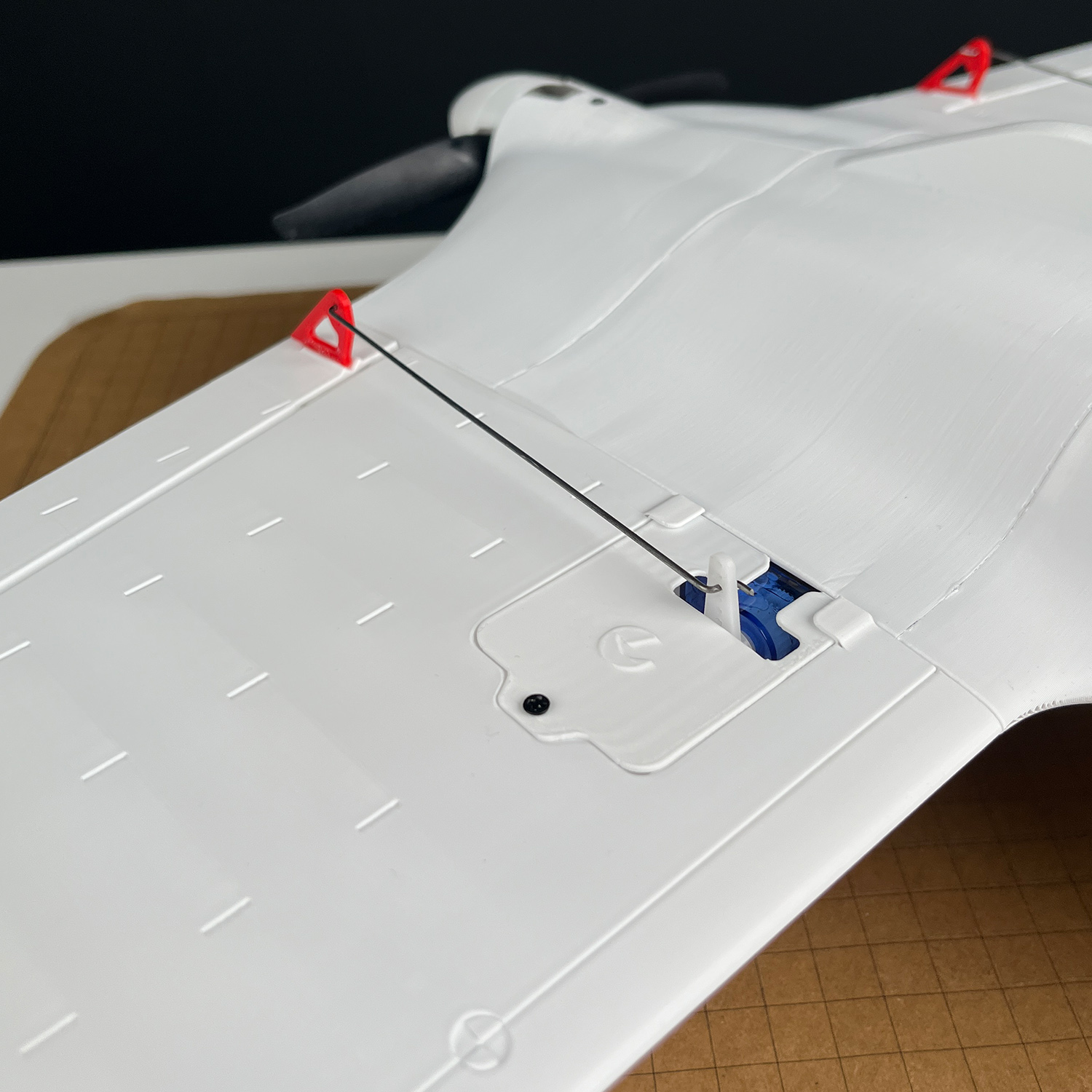

- Pushrods
- TPU hinges and Hinge Maker tool
- Hardware (Screws, rods, wires and etc.)
- Additional - Servo Protector (PetG)
- Some special gifts
Note: DJI Air Unit and Caddx Vista Hatches are not included in the package.
Click to download DJI Air Unit Hatch
Click to download Caddx Vista Hatch
Buy Orca Power Pack for electronics.
Michael Foster –
– Beautifully packaged and presented. The print quality is very good. An easy to build kit especially with the small guides that slot into the sections, 2 per section to hold them in place. To achieve a better connection I would suggest a slight overlap of the back of each section to allow a really strong seal once glued with no gaps. The hinges are perfect for the aileron to wing connections, The motor mount slots nicely into the rear fuselage. The only weak design point that I found was the front two clips that hold the battery access section to the fuselage. They are just a bit tight and in the case of two of my covers they broke off.
A lovely looking model which I shall be flying soon. Thankyou
Cemal OZCELIK (store manager) –
Thank you for your review. We are working on the Hatch Lock design…
Laszlo –
Hi,
fpv is so cool! Congratulations! What kind of vtx do you recommend for the analog hatch?
Cemal OZCELIK (store manager) –
Thanks!
You can use any analog FPV system with an analog hatch. Analog Hatch has 29mm camera holder arms. This is the difference between HD and Analog Hatches.
Hans Vogels (verified owner) –
The parts are beautifull printed. Only the parcel you use is bad. You first have to mark the parcel that are breakable parts in it and even use a stronger parcel.
Cemal OZCELIK (store manager) –
Hans, thanks for your valuable comment. We send new ones of the damaged parts. The CraycleBox was the hardest kraft box we could find in this size. Sorry for your bad experience, our plan is to repack the boxed models into a thick, corrugated carton. In this way, we aim to make CraycleBox usable for different purposes in the future. Or we work for CraycleBox V2.
